Ceramic Rubber Bonded Hoses

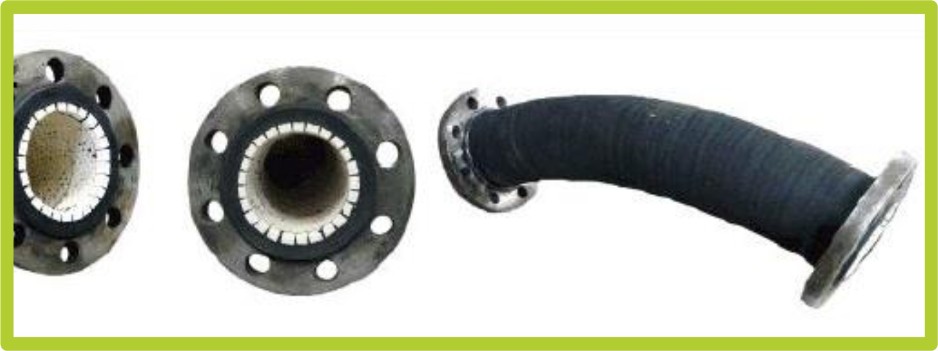

Application:

Ceramic lined flexible Hoses are ideal for use in highly abrasive conditions where conventional Rubber Hose, Expansion joints or Bellows connections require frequent replacement. Ceramic lined flexible Hoses may also be used to isolate mechanical vibration or to connect non-stationary Equipment.


Features:

1.) Ceramic lining is 12 times more wear resistant than Stainless Steel.
2.) Impact resistant.
3.) Flexibility with the minimum bend radius of roughly 12 times the hose ID.
4.) Corrosion resistant and compatible with most chemicals found in slurries.
5.) Comes in a wide variety of end connections (See last page)
6.) Available in continues lengths up to 20 meters.

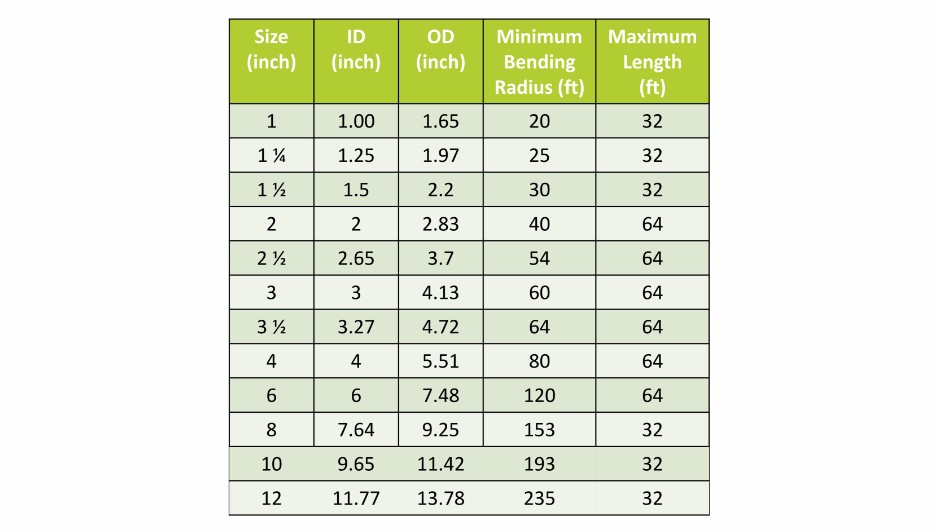

Dimensional Specifications:



Technical Specifications:

1.) Diameter Sizes from 1 inch up to 24 inch
2.) Lengths up to 20 meters
3.) Maximum operating pressure of 150 Psi
4.) Maximum operating temperature of 250˚F

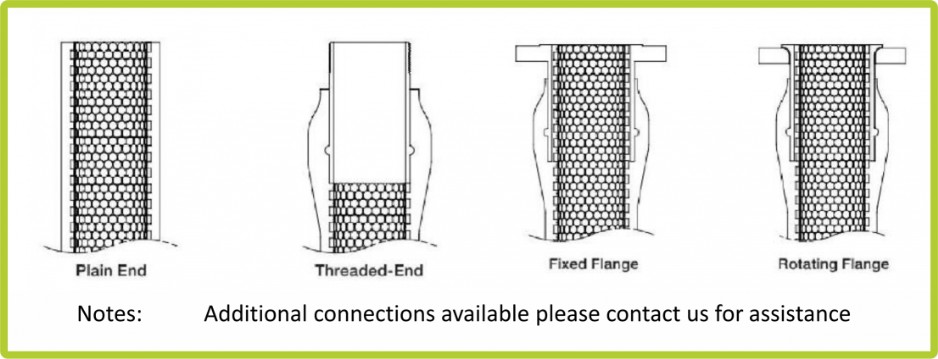

Standard End Connections
